How to Choose the Right Steel Road Plate Thickness

Steel road plate thickness determines how much load a plate can carry before it deflects or fails. Every worksite is different — the ground conditions, vehicle types, traffic frequency, span of the opening and the intended use all affect which thickness is appropriate.

The consequences of under-specifying are serious. A plate that deflects under load creates an uneven surface, a trip hazard, and in extreme cases can fail entirely — putting vehicles, workers and the public at risk. Over-specifying increases cost and makes plates heavier and harder to handle on site.

Getting the right thickness is about matching the plate to the job — not guessing, and not always defaulting to the heaviest option available.

Before thinking about thickness, it's worth understanding that steel road plates are used in several different ways — and each has different requirements.

This is the single most important factor. A pedestrian walkway has completely different load requirements to a truck crossing. Think about the heaviest vehicle that will cross the plate — and plan for that, not the average.

The unsupported span is the distance the plate must bridge across the opening with no support beneath it. The longer that span, the more the plate will deflect under load. A 20mm plate bridging a narrow 500mm trench will perform very differently to a 20mm plate spanning a 2m wide excavation.

As the unsupported span increases, load concentrates at the centre of the plate causing deflection — or bowing. A thicker plate resists this flex and maintains a flatter, safer surface.

This is a factor many people overlook. A plate laid flat on the ground for ground protection or a temporary roadway is fully supported underneath — meaning it doesn't need to resist bending in the same way a trench bridging plate does. In these applications, a thinner plate is often perfectly appropriate because the ground itself is carrying the load, not the plate spanning unsupported.

Similarly, gutter and kerb crossings are partially supported at both ends — the plate only needs to bridge a relatively short, shallow void. A 16mm or 20mm plate is usually more than sufficient for these applications.

Short term crossings for a single pour or excavation have different requirements to plates that will be in place for weeks or months. Longer term installations often warrant stepping up a thickness for durability and reduced movement over time.

High-frequency crossings — a busy haul route or a site entrance — put more cumulative stress on a plate than an occasional crossing. Repeated loading on a thinner plate can cause fatigue and movement over time.

Plate length also plays a role — particularly for trench bridging. Most road plates are laid across a trench, meaning the shorter dimension of the plate is the unsupported span. A 6m x 2.4m plate laid across a trench typically spans 2.4m, with the 6m running parallel to the excavation. Always orient plates to minimise the unsupported span where possible.

For very long plates spanning wide openings, the risk of deflection increases — always factor in both the span width and the plate length when specifying.

When steel road plates are used for ground protection — laid flat over mud, soft ground, grass or unstable terrain to create a solid surface for trucks and plant — the load calculation is completely different to trench bridging.

In ground protection applications the plate is fully supported by the ground beneath it. The plate's job is to distribute the vehicle load across a wider area and provide a stable, even surface — not to span an unsupported gap. This means you can often use a thinner plate than you might think.

The same logic applies to gutter and kerb crossings. The plate sits on solid ground at both ends and only bridges a shallow, narrow void. A 16mm or 20mm plate handles these applications comfortably in most cases — there's no need to jump to 32mm or 40mm just because heavy vehicles are involved.

For the majority of construction and civil worksites, 20mm is the go-to specification. It handles the full range of heavy site vehicles reliably and cost-effectively, and works across both trench bridging and ground protection applications. It's the most widely specified thickness in Australia for a reason.

If you're unsure and your application involves heavy vehicles crossing a trench or excavation, start with 20mm. It covers most standard scenarios and is available in the widest range of standard sizes.

For most standard worksite applications the guide above is sufficient. However there are situations where you should always seek advice from a qualified structural engineer:

• Wide span openings where the plate is carrying load across a large unsupported gap
• Crane outrigger pad applications where point loads are extreme
• Long term installations on major public roads or high-traffic routes
• Any application where failure would create a serious safety risk
• Unusual ground conditions or very soft sub-base

We don't provide structural load data for our plates — it's always the customer's responsibility to confirm the plate is appropriate for the intended application. When in doubt, get professional advice.

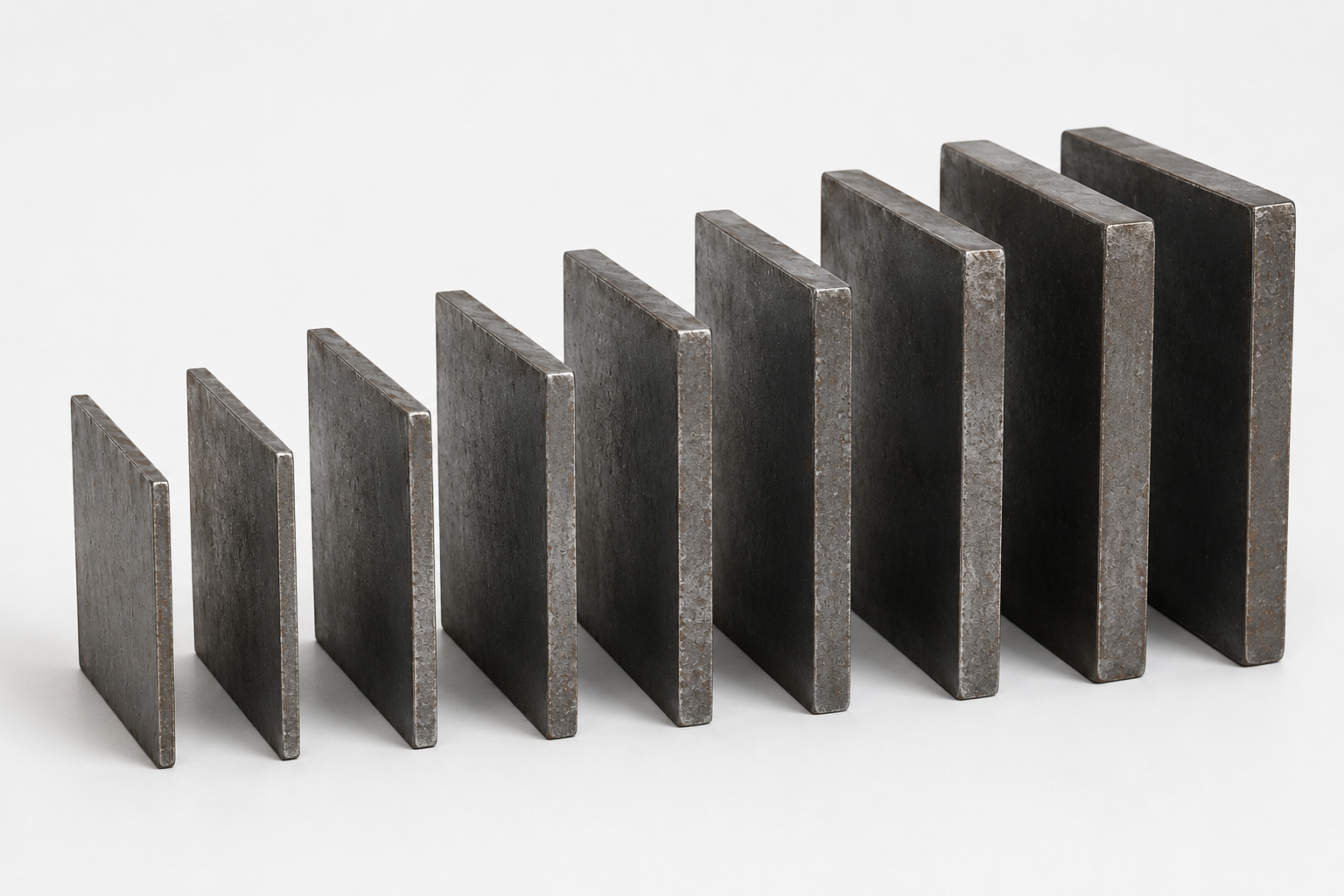

Our standard range covers 16mm through to 40mm — but if your project requires something outside this range, we can manufacture custom thicknesses up to 50mm at our Sydney laser cutting facility. Just get in touch with your requirements and we'll provide a quote.
