How to Install Steel Road Plates Safely — A Step by Step Guide

Steel road plates are a reliable, heavy-duty solution for temporary site access — but only when installed correctly. Improper installation can create serious safety hazards for vehicles, workers and the public. This guide covers everything you need to know to install steel road plates safely and compliantly on your worksite.

⚠️ Important: This guide provides general installation advice only. Always assess your specific site conditions before installation and consult a qualified structural engineer for critical applications or where you're unsure. It is the installer's responsibility to ensure road plates are suitable for the intended application.

Before You Start — Site Assessment

Before a single plate goes down, you need to assess the site. A road plate installation that looks straightforward can have hidden risks — unstable ground, insufficient support surface, or traffic loads that exceed what the plate can safely handle.

Key things to assess before installation:

  • What is the width of the trench or excavation to be spanned?
  • What type and weight of vehicles will cross the plates?
  • Is the supporting surface on each side solid — concrete, asphalt or equivalent?
  • Are the trench walls stable enough to support traffic loads?
  • What are the local regulatory requirements for road plate installations on this site?
  • Is a structural engineer's sign-off required for this application?

💡 Rule of thumb — the 1/3 rule: As a general guide, a road plate should cover the trench span plus extend at least one third of the plate width onto solid ground on each side. So if your plate is 2.4m wide, each side should have approximately 800mm of plate sitting on solid ground beyond the trench edge. This ensures adequate support and prevents the plate from tipping or shifting under load.

Required PPE

Steel road plates are heavy — a 3m x 1.5m x 20mm plate weighs over 700kg. Always use appropriate personal protective equipment when handling and installing plates.

🧤
Protective gloves
👷
Hard hat
👢
Steel cap boots
🥽
Eye protection
🦺
Hi-vis vest
Step by Step Installation Guide
1
Prepare the supporting surface
The ground on each side of the trench must be firm and stable — concrete, asphalt or equivalent. Soft, loose or uneven ground will not provide adequate support for the plate edge and can cause the plate to shift, tip or sink under load. If the surface isn't solid, it needs to be stabilised before plates go down.
2
Select the correct plate size and thickness
Refer to our thickness guide to confirm you have the right plate for the application. The plate must be wide enough to span the trench and extend adequately onto solid ground on both sides — following the 1/3 rule as a minimum guide. If in doubt, go wider and thicker rather than cutting it fine.
3
Use appropriate lifting equipment
Never attempt to manually lift or drag steel road plates — they are extremely heavy and the risk of injury is severe. Use a crane, excavator, rubber tyred backhoe or forklift with appropriate lifting capacity. If your plates have welded lifting points (LockNLift), use these for safe, controlled lifting. Always ensure lifting equipment is rated for the load and operated by a competent person.
4
Position the plate correctly
Lower the plate carefully into position, centred over the trench opening. Ensure the plate extends equally onto solid ground on both sides — at least one third of the plate width on each side as a minimum. The plate should sit flat and level with no rocking or unevenness.
5
Secure the plate against movement
An unsecured plate can shift laterally or longitudinally under repeated vehicle loads — creating a dangerous situation. Secure plates using bridge deck pins, and use cold mix asphalt or similar to pin the edges. Where multiple plates butt up against each other, welding the joints is recommended to prevent movement and create a continuous surface.
6
Create edge transitions (feathering)

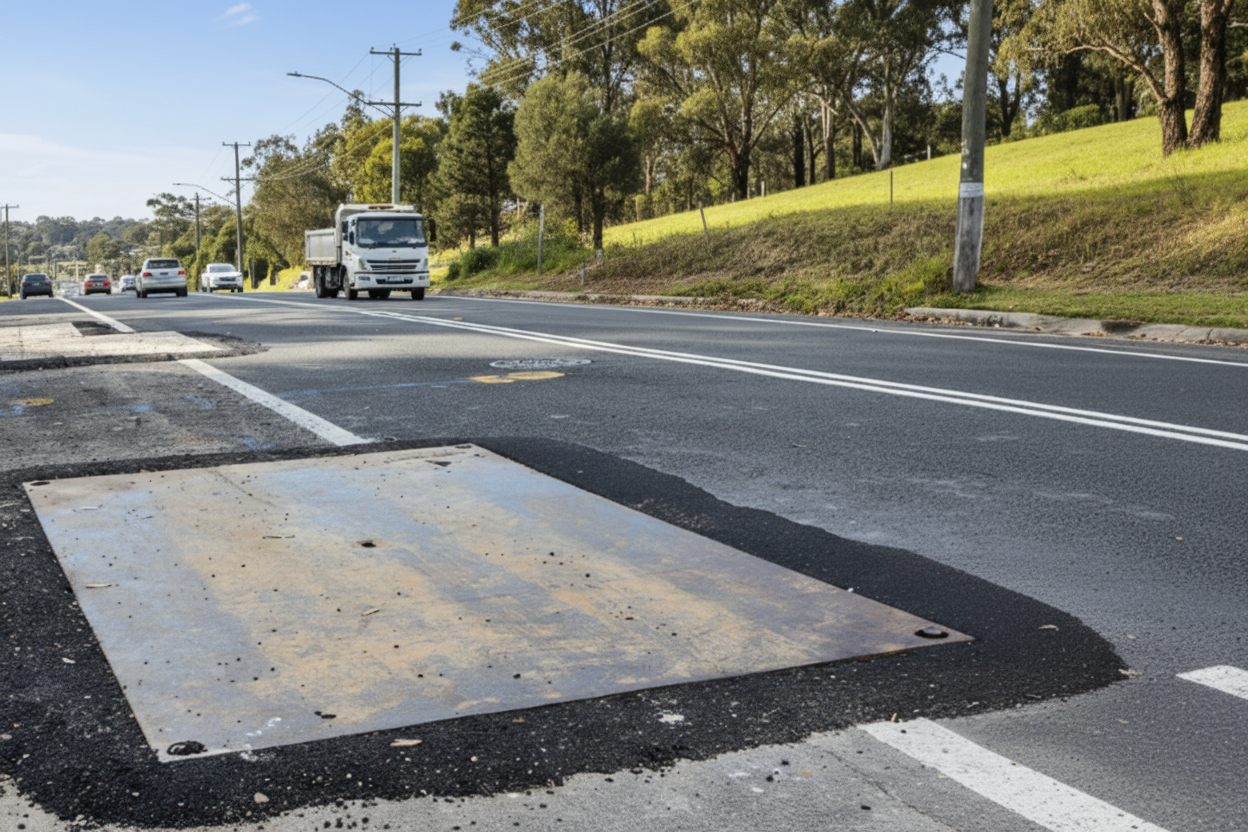

The edge of a steel plate creates an abrupt lip that can be hazardous for vehicles — particularly motorbikes and cyclists — and can cause plate movement under impact loading. Use cold mix asphalt or a ramp compound to feather the edges of the plate, creating a smooth transition from the road surface onto the plate. This is a regulatory requirement in many jurisdictions.
7
Apply anti-skid coating if required
Bare steel can be extremely slippery when wet — a serious hazard for pedestrians, cyclists and vehicles. Many government regulations require anti-skid surfaces on road plates used on public roads and highways. If your plate doesn't have a non-slip coating applied, check whether one is required for your application and location.
8
Fence the exposed trench edge
The edge of the road plate adjacent to the open excavation should be fenced or barricaded to prevent falls into the trench. Don't assume the plate itself provides adequate fall protection — the gap between the plate edge and the trench wall can still be a hazard.
9
Install advance warning signage
Drivers approaching a steel plate need advance warning — particularly at night or in poor visibility. Install appropriate warning signs such as "Steel Plate Ahead" or "Bump" in accordance with your local traffic management requirements. Mark or paint the edges of the plate for improved visibility.
10
Inspect regularly throughout the day
Road plates can shift, sink or lift under repeated vehicle loads — particularly if ground conditions change or traffic is heavier than anticipated. Inspect plates regularly throughout the working day and reassess if you notice any movement, deflection or change in ground conditions. Check that trench walls remain stable under traffic loads.
11
End of day inspection
Before leaving site each day, conduct a thorough inspection of all plates. Check for movement, edge lifting, damage, or any change in condition. Ensure all securing measures are still in place and the installation remains safe for overnight traffic if the plates are to remain in place.
Handling, Stacking & Transportation
On site storage

When storing plates on site, choose a firm, level area with adequate space. Stack plates on timber bearers to reduce the risk of slipping and to allow lifting equipment to get underneath. Never stack plates on soft or uneven ground where the stack could topple.

Transportation

When transporting steel road plates by truck, ensure plates are securely chained to the tray of the vehicle. Unsecured plates are extremely dangerous on the road. Use appropriate tie-down equipment rated for the load and check chains and straps are tight before departure and at regular intervals during transport.

Slinging and lifting

All slinging and movement of steel plates should be carried out by a suitably experienced and competent person. Use lifting equipment that is rated for the weight of the plates being moved and always keep clear of the load during lifting operations.

Regulatory Requirements

Road plate installations on public roads and worksites are subject to a range of regulatory requirements that vary by state and local council. Common requirements include:

  • Anti-skid surfaces on plates used on roads and highways
  • Traffic management plans for plates on public roads
  • Advance warning signage requirements
  • Engineer sign-off for certain applications
  • Compliance with AS3610 and relevant OHS acts and codes of practice

Always check the regulatory requirements applicable to your specific site and location before installation. Requirements vary significantly between states and between public road and private site applications.

When Things Go Wrong — Warning Signs to Watch For
  • 🔴 Plate movement — lateral or longitudinal shifting under traffic
  • 🔴 Deflection or bowing — plate bending under load
  • 🔴 Edge lifting — one edge of the plate rising under vehicle impact
  • 🔴 Trench wall movement — ground cracking or slumping near the plate
  • 🔴 Noise — banging or clanking as vehicles cross, indicating movement
  • 🔴 Surface damage — asphalt ramps breaking away from plate edges

If you notice any of these signs, stop traffic crossing the plate immediately and reassess the installation before allowing further use.

⚠️ Disclaimer: This guide is provided as general information only and does not constitute engineering advice. Aussie Road Plates does not provide structural load data for our plates. It is the customer's and installer's responsibility to ensure road plates are suitable for the intended application. Consult a qualified structural engineer for critical applications.
